Detachable Neck Extendable Low-Loader/Boat/Vessel Transporter For Sale
£/wk

Trailer Lists

SPECIFICATION

Ref: TF1015

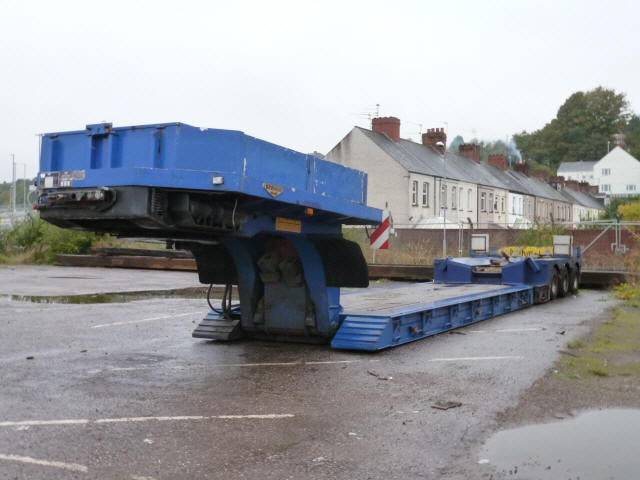

ALL STEER TRIAXLE, 71TONNE, EXTENDABLE, DETACHABLE NECK, LOW-LOADER/BOAT/VESSEL TRANSPORTER.

1993 BROSHUIS STGO CAT2
Main Deck Length Closed: 8.2Mtrs (26'- 10")
Main Deck Length Open:    13Mtrs  (42'- 7")
Main Deck Width (fixed):     2.7Mtrs (8'- 11")

An all steel construction finished in plain blue with silver wheels and comprising:-

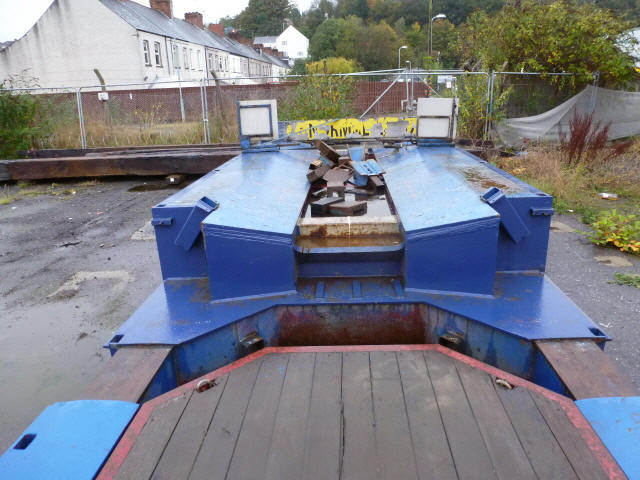

   3.1Mtr detachable foredeck including:-
           Stowage side boards.
           Deck access steps.
           Electro-hydraulic power pack.
           Front raise/lower facility.
           Front spray suppression wings.
           Front 'wide-load' marker boards.

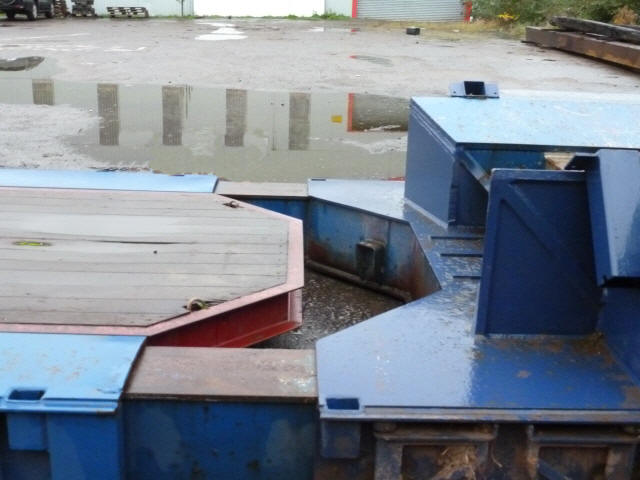

   Extendable main deck incorporating:-
           406mm (16") telescopic outer load-carrying beams.
           Lift-out Keruing deck panels for boat transportation.
           Fixed heavy-duty front loading ramps.
           Nine pairs of hinged side outriggers.
           Seven per side heavy duty bottom rail lashing bars.
           Eight pairs post sockets (85mm X 55mm).

   4.7Mtr vessel support rear deck with:-
          Rear 'wide-load' & 'convoi exceptionnel' marker boards.
          Swinging lashing links & rope hooks.
          Four pairs post sockets (85mm X 55mm)
          Angled acrow prop sockets.

   Three X BPW power steering axles & air suspension.
   Automatic, remote (wander lead) and manual override steering options.
   Suspension raise/lower facility.
   Drum brakes.
   Wheel chocks & holders.
   Tyres: 235/75X17.5 all First Life and 80% to the good on average.
   Rear anti-spray mud flaps.
   Hazard warning lamp electrical sockets.

Plated Weights (tonnes):-

   MPH     GVW    EACH AXLE    IMPOSED
     12           71            12                      35
     20           71            12                      35
     25           63            11                      30
     30           63            11                      30
     35           60            10                      30
     40           58            10                      28
     60           55            10                      25

This is an extremely well designed and beautifully built trailer. It has not carried a lot of heavy plant and in fact it has been enjoying itself delivering SUNSEEKER BOATS for the last five years.  It is in very good working order and currently in use.

(Please Note: all dimensions and information supplied were believed to be correct at the time of publishing.)
